OIML Cylindrical / Plate standard weight

IMG_2013-3
Features
Applications
  • Calibration for balances and weights
  • Certification for ISO9000/14000 series, IATF16949
  • Weights for a clean room
  • Validation system for GLP/GMP
  • Innovation for HACCP plan
Material
  • Non-magnetic stainless steel
  • Magnetic susceptibility(χ)
    class E2
    class F1
    class F2
    20kg～20g
    0.07
    0.2
    0.8
    10g～2g
    0.18
    0.7
    4
    less than 1g
    0.9
    10
    －
Shape
  • 20kg-1g : Cylinder type (based on R111)
    500mg-1mg : Plate type (based on R111)
  • Maximum surface roughness (Rz)
    class E2
    class F1
    class F2
    Rz (μm)
    1
    2
    5
Weight dimensions

(based on OIML R111)

oiml(c)-drawing

Nominal value
D1
D2
D3
[H]
R1
R3
T
20kg128mm112mm74mm224mm18mm3mm22mm
10kg100mm90mm58mm185mm15mm3mm17mm
5kg80mm72mm46mm145mm12mm2mm13mm
2kg60mm54mm36mm103mm9mm2mm10mm
1kg48mm43mm27mm81mm7mm2mm8mm
500g38mm34mm22mm64mm6mm2mm6mm
200g28mm25mm16mm48mm4mm2mm5mm
100g22mm20mm13mm39mm4mm1mm4mm
50g18mm16mm10mm30mm3mm1mm3mm
20g13mm11.5mm7.5mm23mm1.8mm0.5mm2mm
10g10mm9mm6mm19mm1.5mm0.5mm1.6mm
5g8mm7mm4.5mm16mm1.3mm0.5mm1.4mm
2g6mm5.5mm3mm12mm0.9mm0.5mm1mm
1g6mm5.5mm3mm6.5mm0.9mm0.5mm1mm
* The height: [H] is a reference value.

Nominal value
A
B
C
plate thickness
500mg13.3mm13.3mm2.5mm0.5mm
200mg9.2mm9.2mm2.3mm0.25mm
100mg9.4mm9.3mm2.3mm0.25mm
50mg8.0mm7.7mm2.4mm0.12mm
20mg7.6mm7.6mm1.0mm0.04mm
10mg7.9mm7.8mm1.0mm0.04mm
5mg4.5mm4.3mm1.0mm0.04mm
2mg4.6mm4.6mm1.0mm0.01mm
1mg4.0mm5.5mm1.0mm0.01mm
* A, B, C are a reference values.
Price list [including a case]
Nominal value
class E2
class F1
class F2
class M1
class M2
case
20kg¥390,000¥299,000¥283,400¥243,100¥230,100Aluminium
10kg¥252,200¥169,000¥161,200¥148,200¥141,700Aluminium
5kg¥195,000¥117,000¥111,800¥104,000¥98,800Aluminium
2kg¥104,000¥52,000¥46,800¥31,200¥26,000Plastic
1kg¥70,200¥41,600¥37,700¥26,000¥23,400Plastic
500g¥54,600¥32,500¥28,600¥20,800¥19,500Plastic
200g¥37,700¥24,700¥22,100¥16,900¥15,600Plastic
100g¥31,200¥20,800¥19,500¥15,600¥14,300Plastic
50g¥20,800¥14,300¥13,000¥11,700¥11,100Plastic
20g¥19,500¥11,700¥11,100¥9,800¥9,100Plastic
10g¥18,200¥10,400¥10,200¥9,100¥8,900Plastic
5g¥18,200¥10,400¥10,200¥9,100¥8,900Plastic
2g¥15,600¥10,400¥10,200¥9,100¥8,900Plastic
1g¥15,600¥10,400¥10,200¥9,100¥8,900Plastic
500mg¥9,000¥6,000¥5,700¥4,500¥4,200Plastic
200mg¥9,000¥6,000¥5,700¥4,500¥4,200Plastic
100mg¥9,000¥6,000¥5,700¥4,500¥4,200Plastic
50mg¥9,000¥6,000¥5,700¥4,500
－
Plastic
20mg¥9,000¥6,000¥5,700¥4,500
－
Plastic
10mg¥9,000¥6,000¥5,700¥4,500
－
Plastic
5mg¥9,000¥6,000¥5,700¥4,500
－
Plastic
2mg¥9,000¥6,000¥5,700¥4,500
－
Plastic
1mg¥9,000¥6,000¥5,700¥4,500
－
Plastic
Price list for Weight + JCSS mass calibration certificate [including a case]
Nominal value
class E2 +Rank 2
class F1 +Rank 3
class F2 +Rank 4
class M1 +Rank 5
class M2 +Rank 5
20kg¥422,000¥324,200¥297,800¥249,400¥236,400
10kg¥284,200¥194,200¥175,600¥154,500¥148,000
5kg¥227,000¥142,200¥126,200¥110,300¥105,100
2kg¥136,000¥77,200¥61,200¥37,500¥32,300
1kg¥89,400¥55,100¥45,800¥31,400¥28,800
500g¥73,800¥46,000¥36,700¥26,200¥24,900
200g¥56,900¥38,200¥30,200¥22,300¥21,000
100g¥49,200¥33,400¥27,600¥21,000¥19,700
50g¥38,800¥26,900¥21,100¥17,100¥16,500
20g¥37,500¥24,300¥19,200¥15,200¥14,500
10g¥36,200¥23,000¥18,300¥14,500¥14,300
5g¥36,200¥23,000¥18,300¥14,500¥14,300
2g¥33,600¥23,000¥18,300¥14,500¥14,300
1g¥33,600¥23,000¥18,300¥14,500¥14,300
500mg¥22,500¥16,800¥12,900¥9,900¥9,600
200mg¥22,500¥16,800¥12,900¥9,900¥9,600
100mg¥22,500¥16,800¥12,900¥9,900¥9,600
50mg¥22,500¥16,800¥12,900¥9,900
－
20mg¥22,500¥16,800¥12,900¥9,900
－
10mg¥22,500¥16,800¥12,900¥9,900
－
5mg¥22,500¥16,800¥12,900¥9,900
－
2mg¥22,500¥16,800¥12,900¥9,900
－
1mg¥22,500¥16,800¥12,900¥9,900
－
Dimensions list of cases for single OIML cylindrical standard weight
Nominal value
W
D
H
20kg220mm210mm300mm
アルミケース-単品(2064x1548)
10kg180mm180mm260mm
5kg160mm160mm220mm
Nominal value
φ
H
2kg～200g95mm120mm
100g～1g55mm50mm
Nominal value
W
D
H

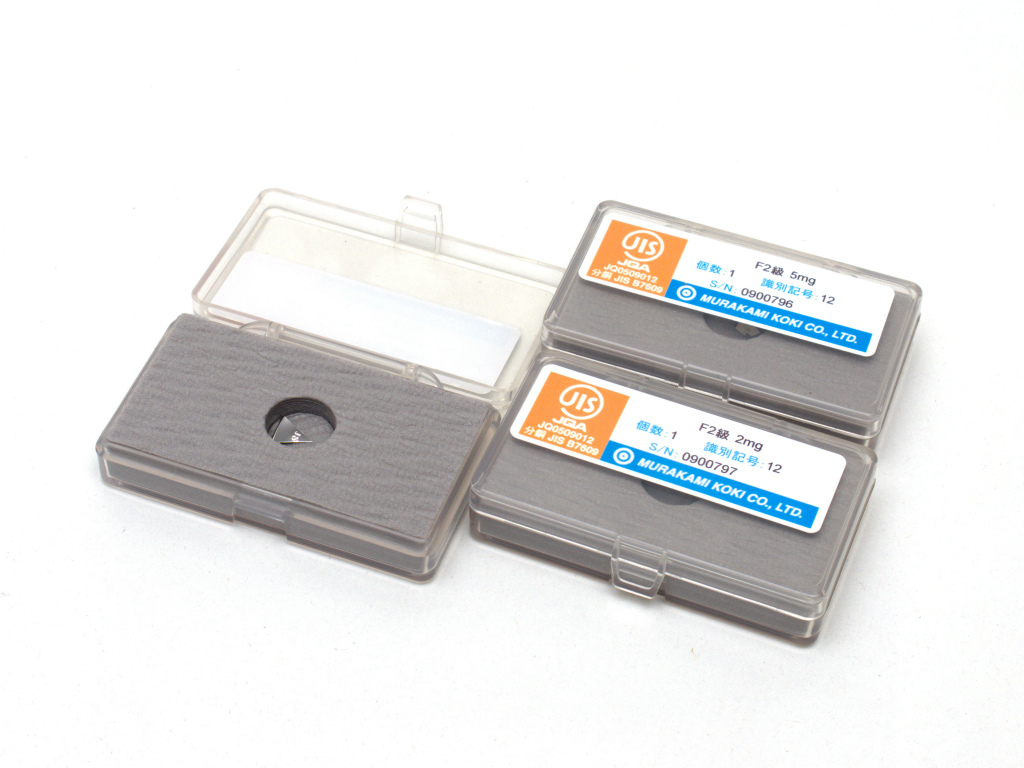

500mg～1mg70mm40mm15mm



Price list for OIML cylindrical standard weight sets [including a case]
Content of the set
class E2
class F1
class F2
class M1
class M2
case
Total 60kg(20kg～1mg)
¥1,873,000¥1,278,700¥1,120,600¥1,025,700¥934,100Aluminium
Total 40kg(20kg～1mg)
¥1,502,500¥994,600¥894,100¥794,700¥715,500Aluminium
Total 20kg(10kg～1mg)
¥1,132,000¥710,600¥667,600¥563,800¥496,900Aluminium
Total 10kg(5kg～1mg)
¥892,400¥550,000¥514,500¥423,000¥362,300Aluminium
Total 6kg(2kg～1mg)
¥721,400¥453,100¥422,500¥338,400¥282,700Aluminium
Total 2kg(1kg～1mg)
¥517,100¥349,600¥328,800¥274,400¥228,600Aluminium
Total 1kg(500g～1mg)
¥436,200¥295,800¥278,800¥235,500¥192,100Aluminium
Total 600g(200g～1mg)
¥384,300¥264,900¥251,600¥215,700¥173,600Aluminium
Total 200g(100g～1mg)
¥284,200¥189,500¥181,100¥155,100¥115,400Plastic
Total 100g(50g～1mg)
¥254,600¥169,700¥162,600¥140,300¥101,800Plastic

* Under 50mg weights are not included in class M2 set.

Dimensions list for cases of OIML cylindrical standard weight set
Content of the set
W
D
H
Total 10kg, Total 6kg390mm280mm190mm
IMG_2028
Total 2kg, Total 1kg320mm240mm150mm
Total 600g270mm200mm145mm
Content of the set
W
D
H
Total 200g, Total 100g132mm105mm52mm
IMG_2032



Combination list for OIML cylindrical standard weight sets
Nominal value
Total 60kg
Total 40kg
Total 20kg
Total 10kg
Total 6kg
Total 2kg
Total 1kg
Total 600g
Total 200g
Total 100g
20kg
2
1
－
－
－
－
－
－
－
－
10kg
1
1
1
－
－
－
－
－
－
－
5kg
1
1
1
1
－
－
－
－
－
－
2kg
2
2
2
2
2
－
－
－
－
－
1kg
1
1
1
1
1
1
－
－
－
－
500g
1
1
1
1
1
1
1
－
－
－
200g
2
2
2
2
2
2
2
2
－
－
100g
1
1
1
1
1
1
1
1
1
－
50g
1
1
1
1
1
1
1
1
1
1
20g
2
2
2
2
2
2
2
2
2
2
10g
1
1
1
1
1
1
1
1
1
1
5g
1
1
1
1
1
1
1
1
1
1
2g
2
2
2
2
2
2
2
2
2
2
1g
1
1
1
1
1
1
1
1
1
1
500mg
1
1
1
1
1
1
1
1
1
1
200mg
2
2
2
2
2
2
2
2
2
2
100mg
1
1
1
1
1
1
1
1
1
1
50mg
1
1
1
1
1
1
1
1
1
1
20mg
2
2
2
2
2
2
2
2
2
2
10mg
1
1
1
1
1
1
1
1
1
1
5mg
1
1
1
1
1
1
1
1
1
1
2mg
2
2
2
2
2
2
2
2
2
2
1mg
1
1
1
1
1
1
1
1
1
1
Total quantity
31
30
29
28
27
25
24
23
21
20
Total quantity of class M2 weight
23
22
21
20
19
17
16
15
13
12

* Under 50mg weights are not included in class M2 set.
